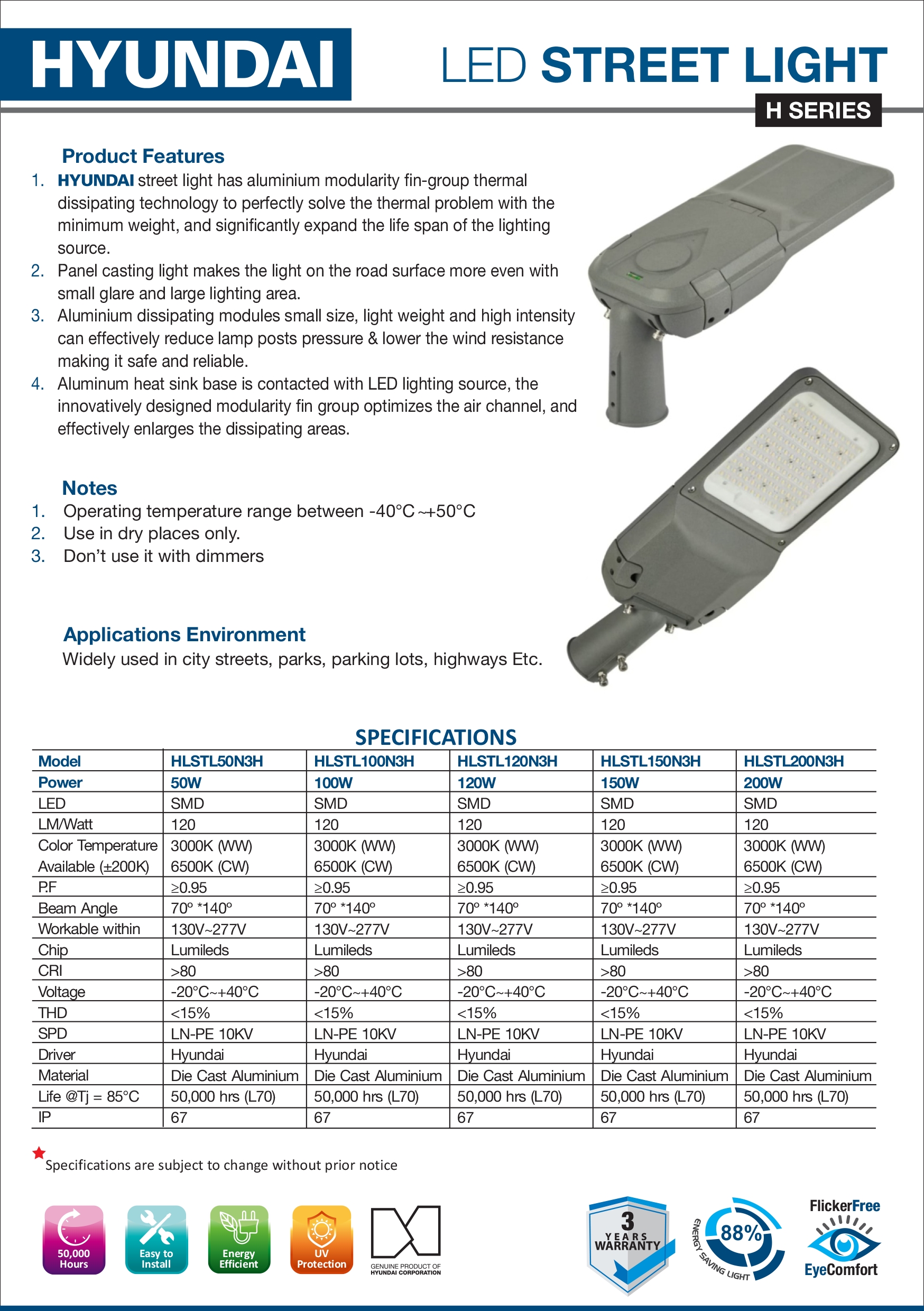

Hyundai Street Light Flyer HSERIES

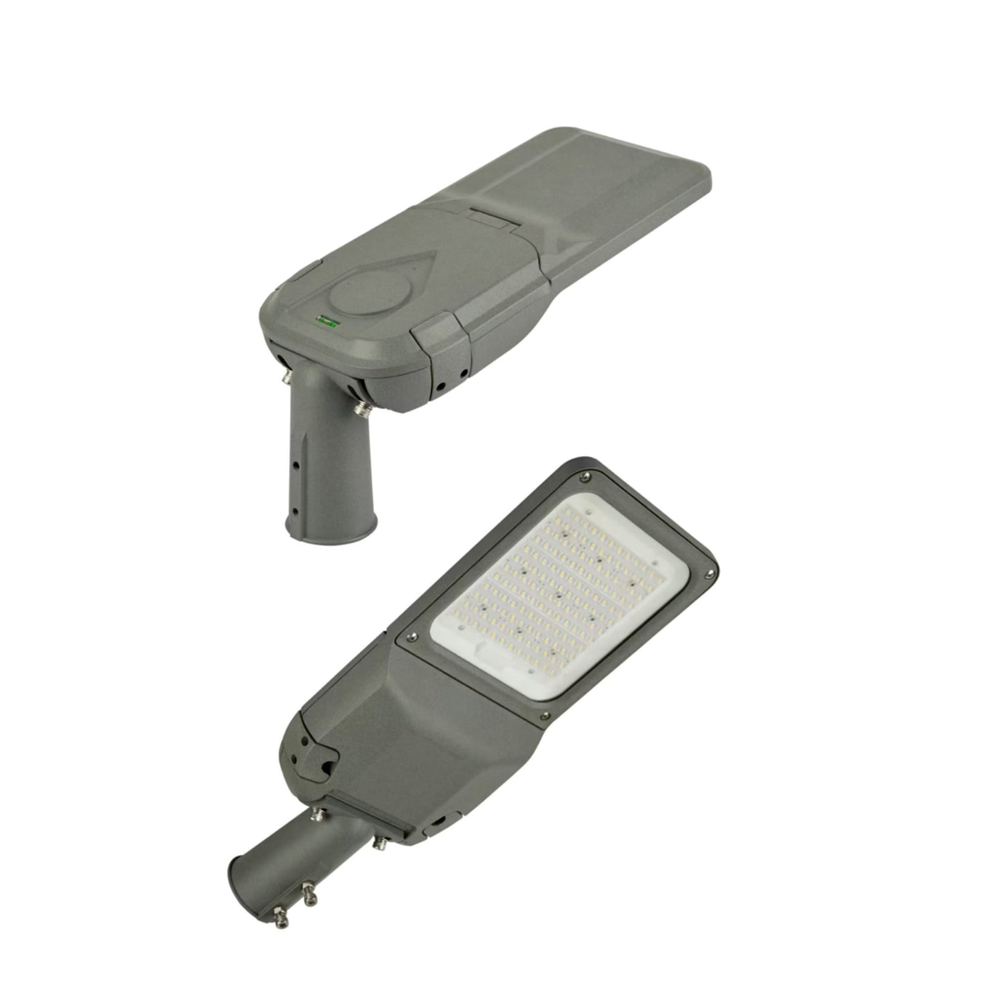

The Hyundai H Series LED Street Light is a premium, high-efficiency lighting solution built for extreme conditions and long-term reliability. Featuring industry-leading Lumileds chips, a remarkable 50,000-hour lifespan, and superior 10kV surge protection, it is engineered for demanding applications on city streets, highways, and parking lots. Its robust IP67 rating and wide operating temperature range ensure consistent performance in harsh environments.
Spefifications
| Specification | HLSTL50N3H | HLSTL100N3H | HLSTL120N3H | HLSTL150N3H | HLSTL200N3H |
|---|---|---|---|---|---|
| Power | 50W | 100W | 120W | 150W | 200W |
| Efficacy | 120 lm/W | 120 lm/W | 120 lm/W | 120 lm/W | 120 lm/W |
| Luminous Flux | 6,000 lm | 12,000 lm | 14,400 lm | 18,000 lm | 24,000 lm |
| LED Chip | Lumileds | Lumileds | Lumileds | Lumileds | Lumileds |
| Color Temperature | 3000K / 6500K | 3000K / 6500K | 3000K / 6500K | 3000K / 6500K | 3000K / 6500K |
| Beam Angle | 70° x 140° | 70° x 140° | 70° x 140° | 70° x 140° | 70° x 140° |
| Power Factor (PF) | ≥ 0.95 | ≥ 0.95 | ≥ 0.95 | ≥ 0.95 | ≥ 0.95 |
| Input Voltage | 130V – 277V | 130V – 277V | 130V – 277V | 130V – 277V | 130V – 277V |
| CRI | >80 | >80 | >80 | >80 | >80 |
| Surge Protection (SPD) | LN-PE 10kV | LN-PE 10kV | LN-PE 10kV | LN-PE 10kV | LN-PE 10kV |
| Protection Rating (IP) | IP67 | IP67 | IP67 | IP67 | IP67 |
| Life Span | 50,000 hrs (L70) | 50,000 hrs (L70) | 50,000 hrs (L70) | 50,000 hrs (L70) | 50,000 hrs (L70) |
| Housing Material | Die-Cast Aluminium | Die-Cast Aluminium | Die-Cast Aluminium | Die-Cast Aluminium | Die-Cast Aluminium |
| Driver | Hyundai | Hyundai | Hyundai | Hyundai | Hyundai |
Description
The Hyundai H Series LED Street Light sets a new standard for durability and performance in outdoor lighting. Engineered with aluminium modularity fin-group thermal dissipating technology, it effectively manages heat with minimal weight, significantly extending the lifespan of the LED source to an impressive 50,000 hours.
This series prioritizes both optical excellence and physical resilience. The panel casting light technology ensures even illumination on road surfaces with minimal glare and a large lighting area, enhancing safety and visual comfort. Constructed from die-cast aluminium, the fixture is built to last. It boasts an IP67 protection rating, making it dust-tight and protected against immersion in water, and operates flawlessly in a wide temperature range.
A key differentiator is the use of high-quality Lumileds chips, which deliver high efficiency (120 lm/W) and excellent color rendering (CRI >80). The H Series is designed for ultimate reliability, featuring a Hyundai-branded driver and exceptional 10kV surge protection (SPD), safeguarding the investment against voltage spikes. Furthermore, it is flicker-free and offers UV protection, ensuring comfortable and safe light for public spaces.
Warranty
DataSheet
